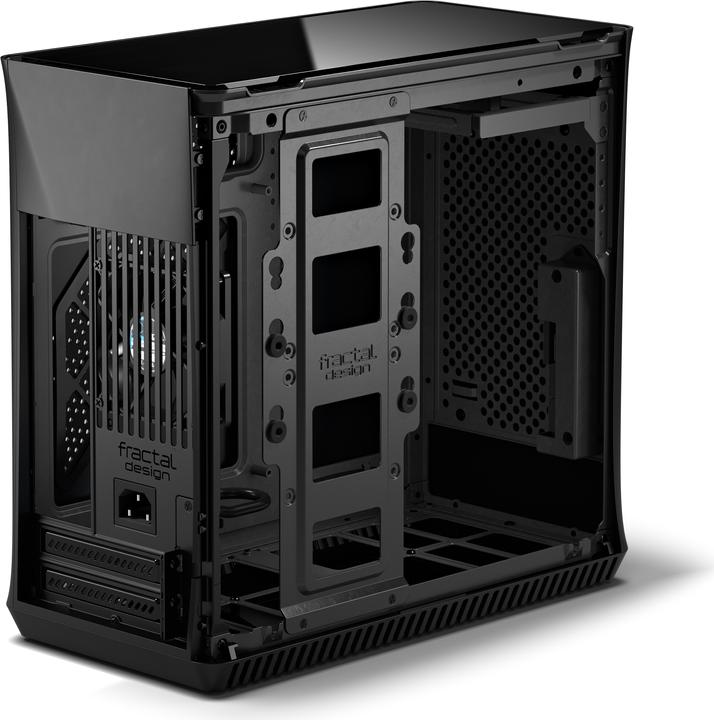

Fractal Era ITX - Carbon TG

Mini-ITX
Currently out of stock

Product details

Era is a testament to the pursuit of creating the perfect mini-ITX case. A compact enclosure that is free from the strict limitations of other small form factor systems. The result is a unique, elegant combination of design and outstanding craftsmanship.

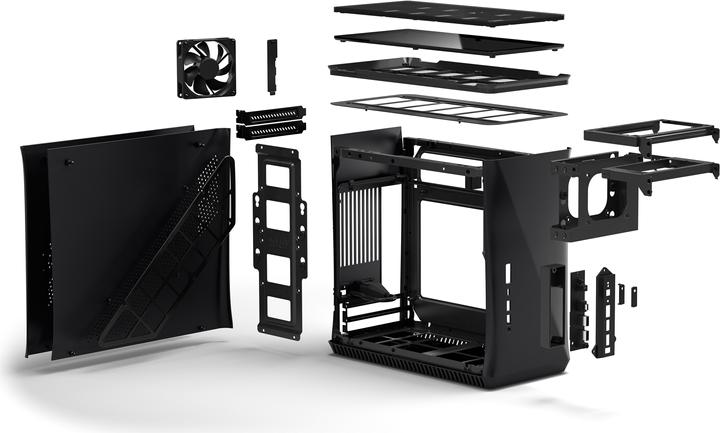

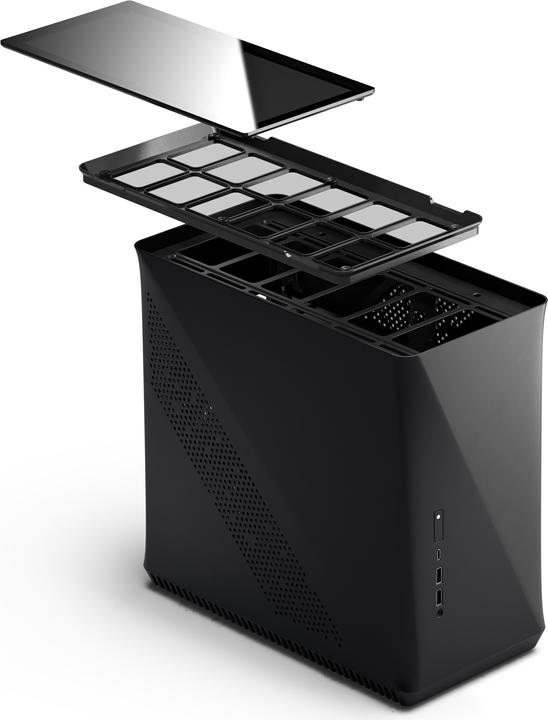

The chassis, made of steel and aluminum, is available in many colors and with various top panels, ranging from premium wood to tempered glass. Despite its small volume of 16 liters, the Era supports dual-slot GPUs, AiO water cooling with radiators up to 240 mm in length, high-end processors, and up to four drives, thanks to the innovative PSU mounting system. The efficient chimney design ensures optimal airflow and excellent cooling for the components.

Compact, refined, and stylish - Era sets impressive standards for small form factor cases and offers an unmatched design that fully utilizes the performance and functionality of high-end hardware.

Key specifications

PC case design
Mini Tower
Number of 3.5" drive slots (internal)
1 x
"Number of 5.25"" drive slots"
0 x
Max. length graphics card
295 mm
Front connectors
1x USB 3.2 Gen2 Type-C
2x USB 3.0
Audio in/out
Max. height CPU cooler
120 mm
Item number
12860111

General information

Manufacturer
Category
Manufacturer no.
FD-CA-ERA-ITX-BK
Release date
6.3.2020
External links

Colour

Colour group
Black
Exact colour description
Carbon

Material

Material group
Metal
Plastic
Specific material description
Aluminium
Steel

PC case properties

PC case design
Mini Tower
Form factor
Mini-ITX
"Number of 5.25"" drive slots"
0 x
Number of 3.5" drive slots (internal)
1 x
"Number of 2.5"" drive slots"
2 x
Number of expansion card slots
2 x
Max. length graphics card
295 mm
Max. height CPU cooler
120 mm
Max length of power supply
160 mm

Connections

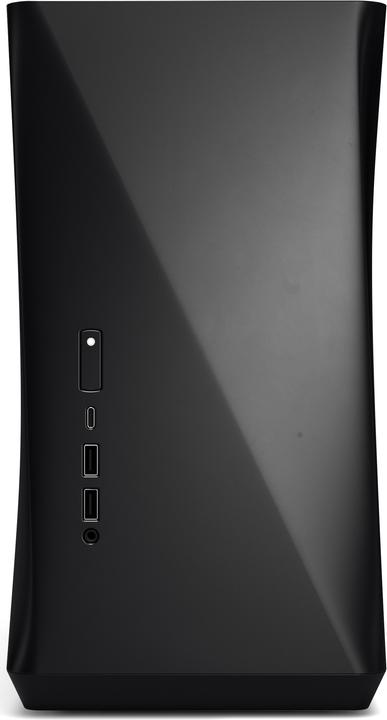

Front connectors
1x USB 3.2 Gen2 Type-C
2x USB 3.0
Audio in/out

Cooling properties

Number of fans
2 x
Number of fan slots
5 x
Fan location
Bottom side
Rear side
Top side
Number of radiator mounts
1
Radiator locations
Top side
Cooling properties
Push/pull possible
Water cooling possible

Rear side

Fans included
1x 80mm
Fan mount locations
1x 80mm

Bottom side

Fans included
Optional fan
Fan mount locations
2x 140mm

Top side

Fans included
Optional fan
Fan mount locations
2x 120mm
Radiator mount locations
1x max. 120mm
1x max. 240mm

HDD Cage

Fan mount locations
1x 80mm
Radiator mount locations
1x max. 240mm

Scope of delivery

Scope of delivery
Installation material

Product dimensions

Height
31 cm
Length
32.50 cm
Width
16.60 cm
Weight
4.20 kg
