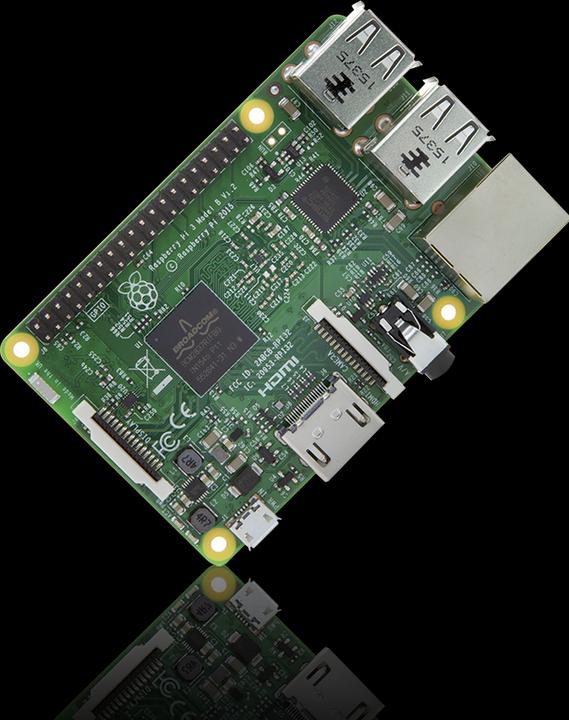

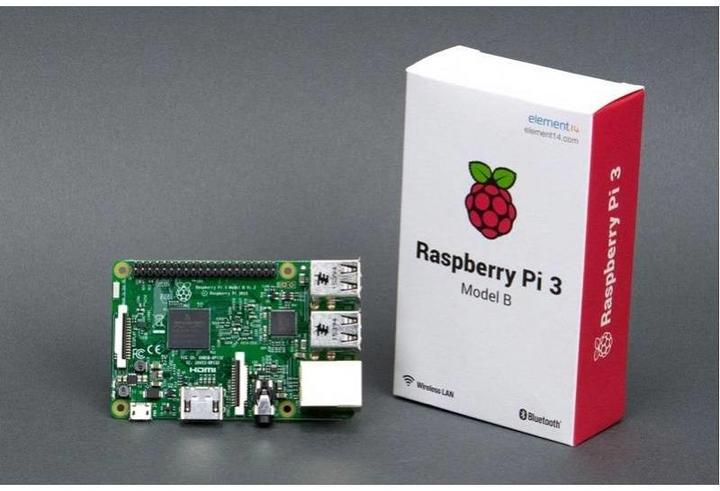

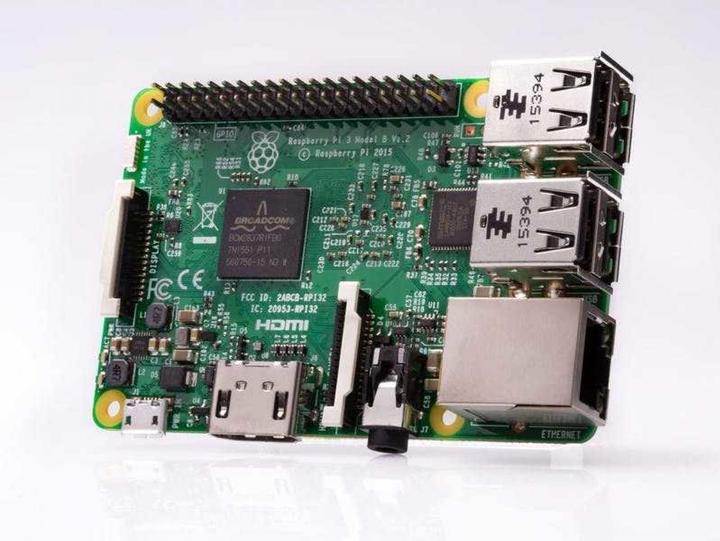

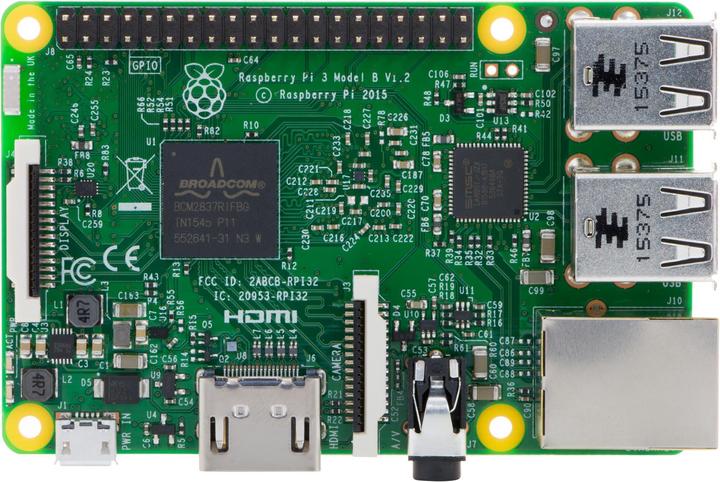

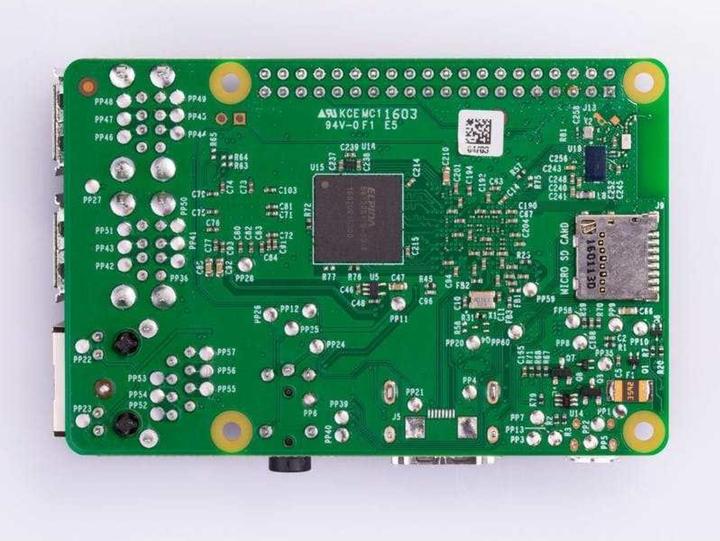

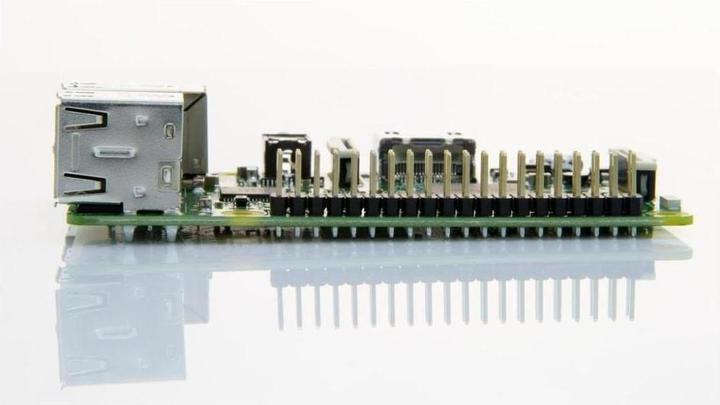

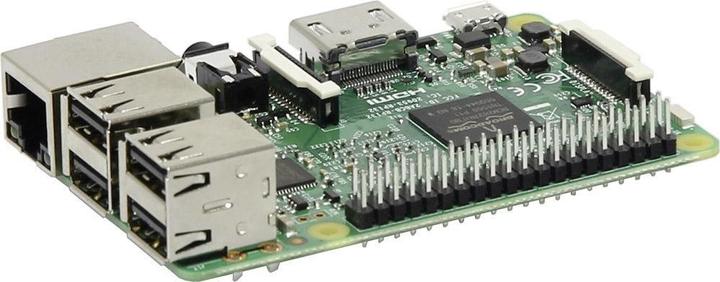

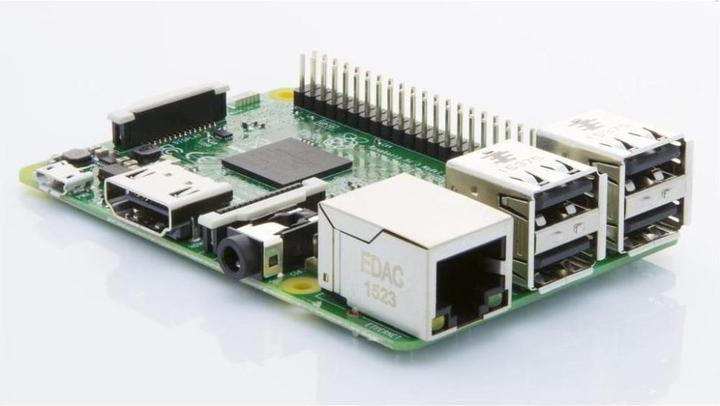

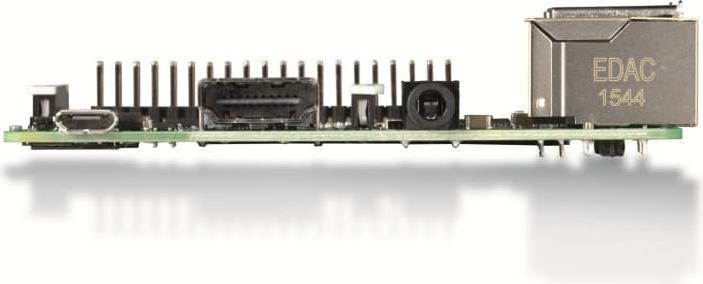

Raspberry Pi 3 Model B

Price in EUR including VAT
611Ratings
BrandMore from Raspberry Pi
Delivered between Sat, 22/3 and Wed, 26/3
More than 10 items in stock at supplier
free shipping
Show all

Product details

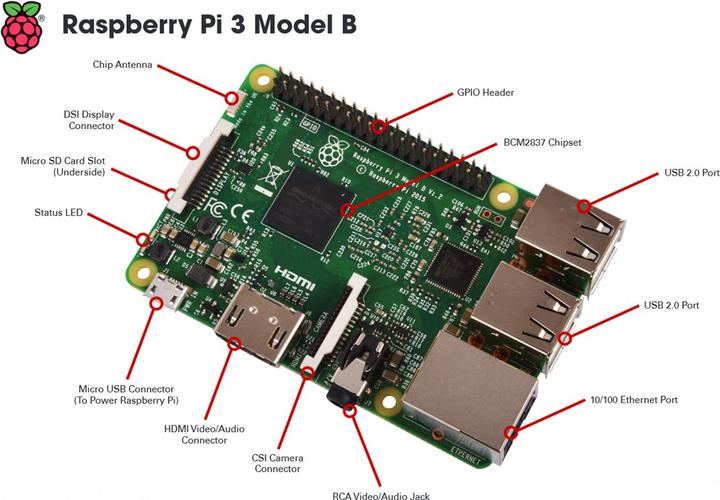

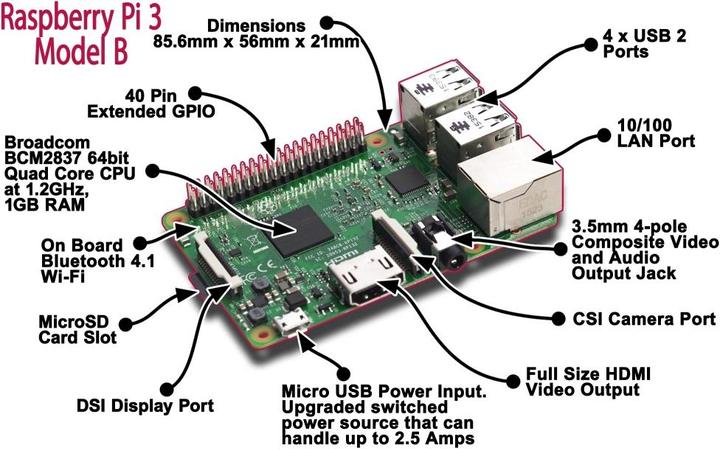

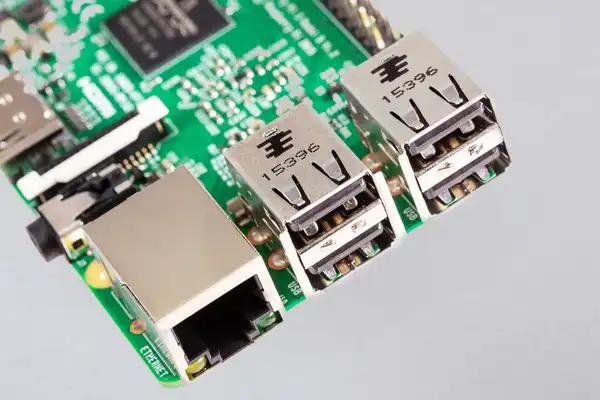

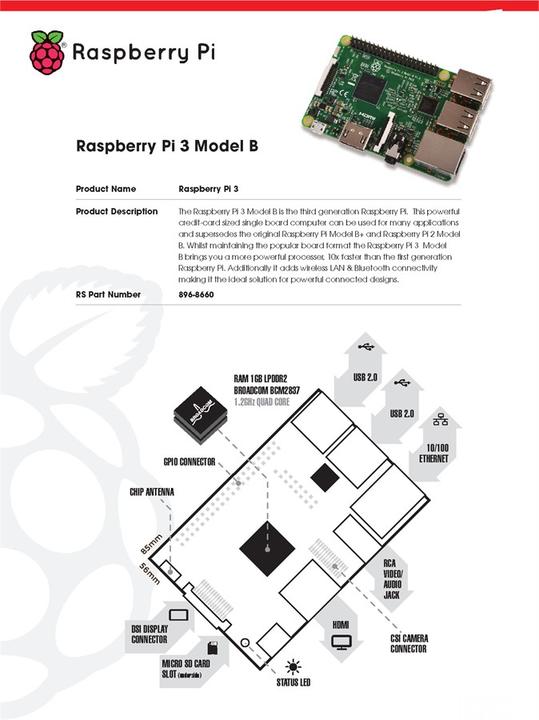

The Raspberry Pi 3 Model B is the successor to the successful mini-computer Raspberry Pi 2. Despite its extremely compact size, it represents a fully functional PC thanks to its 1.2 GHz quad-core ARMv8 processor and 1 GB of RAM. It is suitable for a variety of applications, such as serving as the basis for a web server, a media center PC, or for control tasks. The Raspberry Pi 3 Model B is also equipped with four USB 2.0 ports, a 10/100 Mbps LAN connection, as well as WLAN 802.11n and Bluetooth 4.1 with Bluetooth Low Energy. The integrated graphics feature an HDMI and an AV output and are capable of playing videos in Full HD (1080p). Sound output can also be done through either the HDMI or AV output. The Raspberry Pi 3 Model B does not have a conventional hard drive connection; instead, it features a microSD card reader, into which a memory card is inserted as the boot medium. Power is supplied via a Micro-USB port, similar to those used in modern mobile devices like smartphones or tablets. The Raspberry Pi 3 Model B is extremely energy-efficient, consuming only about 4 watts during operation.

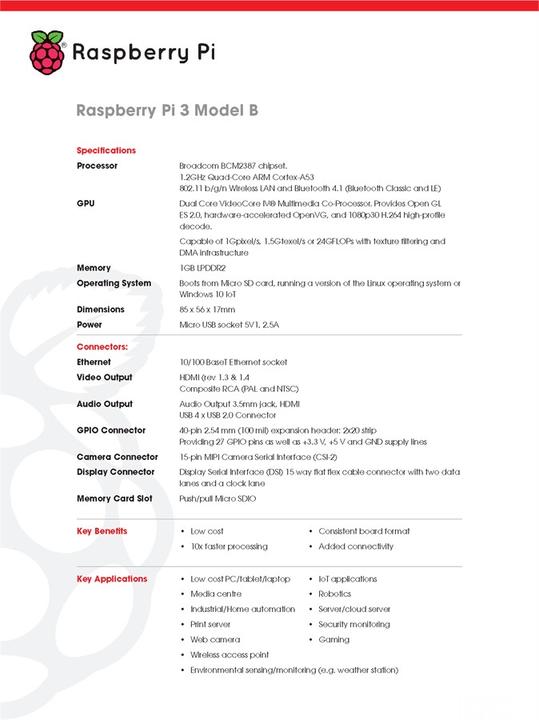

Key specifications

Development board type
Board
Memory
1000 MB
Processor family
Broadcom
Processor type
Cortex-A53
Clock speed
1200 MHz
Number of cores
4
Item number
5704269

General information

Manufacturer
Category
Manufacturer no.
RASPBERRYPI3-MODB-1GB
Release date
29.2.2016

Target group

Target group
Adults,
Children

Development board properties

Development board type
Board
Processor family
Broadcom
Processor type
Cortex-A53
Clock speed
1200 MHz
Memory
1000 MB
Number of cores
4
GPU
Video Core IV

Power supply

Power supply
USB power delivery
Operating voltage
5 V

Wireless transmission

Wireless transmission
Bluetooth,
Wi-Fi
Wi-Fi standard
Wi-Fi 1 / 802.11b,
Wi-Fi 3 / 802.11g,
Wi-Fi 4 / 802.11n
Bluetooth version
4.1

Connections

USB ports
Micro USB-B
Exact USB ports
Micro USB-B 2.0 (1x)
Audio Connections
Jack 3.5mm (1x)
Video connections
HDMI (1x)
Network connections
RJ45 (1x)
Number of I/O
40
HDMI version
1.40
Max. port speed
100 Mbit/s
Memory card type
microSD
Additional connections
DSI,
GPIO,
RCA

Scope of delivery

Scope of delivery
1 piece
Additionally required (not included)
Micro USB cable,
MicroSD card,
Power supply

Product dimensions

Length
85 mm
Width
56 mm
Height
17 mm
Weight
40 g

Package dimensions

Length
12.30 cm
Width
7.80 cm
Height
3.50 cm
Weight
58 g
